PX2KW | Class I, Div 1 & 2 | AEx d, AEx e, AEx nR | Hazardous (Classified) Location Barrier Cable Gland For all types of Single / Served Wire Armored Cable

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Oops! We could not locate your form.

No thanks, I'd just like to Download the datasheet.

Globally Approved, Explosive Atmosphere Barrier Cable Gland

  • Metal-to-metal armor clamping
  • Direct and remote installation
  • Integral protected deluge seal
  • Compound barrier type flameproof seal
  • Controlled outer load retention seal
  • Unique OSTG prevents overtightening
  • Disconnectable, union feature design
  • -60˚C to + 85˚C (-76˚F to +185˚F)
  • Globally marked, UL, cCSAus, IECEx and ATEX
  • Superior EMC performance
  • As standard in nickel plated brass with NPT thread form
  • Compound barrier seals around internal cable cores after removing any inner cable sheath/ bedding; completely eliminating any risk of coldflow

For under / oversized armor wires click here

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Cable Anchorage = Class B
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B
ATEX Certificate CML 18ATEX1325X, CML 18ATEX4317X
Code of Protection II 2G 1D, Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
II 3G, Ex nR IIC Gc
I M2 Ex db I Mb*, Ex eb I Mb*
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0182X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb*, Ex eb I Mb*
Compliance Standards IEC 60079-0,1,7,15,31
Note: *Per ATEX CML 18ATEX1325X and IECEx CML 18.0182X, aluminium alloys are not permitted in
Group I mining applications.
cCSAus Certificate (20s16 - 90) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II: Class I, Zone 1 AEx d IIC Gb, AEx e IIC Gb, Class I, Zone 2 AEx nR IIC Gc,
cCSA Code of Protection*** Class I, Div. 2 Groups A, B, C and D; Class II, Div. 2 Groups F and G; Class III, Div. 2; Type 4X: Oil Resistant II:Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-60079-0,1,7,15,31 CAN/CSA-E6124111 Part 11, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079
UL Certificate (20s16 - 90) E161256
Code of Protection Class I Div 1 and 2, Groups A,B,C, and D; Class II Div 1 and 2, Groups E,F, and G
Compliance Standards UL 2225, CSA C22.2 No 174, UL 514B, CSA C22.2 No 18, CSA C22.2 No 30
ECAS Certificate 20-02-05624
UkrSEPRO CЦ 19.0371X
EAC Certificate TC RU C-GB.AA87.B.00487
Code of Protection 1Ex d IIC Gb X, 1Ex e IIC Gb X, 2Ex nR IIC Gc X, Ex ta IIIC Da X, IP66, IP67, IP68
RETIE Approval Number 03866
CCOE / PESO (India) Certificate P444949
NEPSI Certificate GYJ18.1252X
INMETRO Approval TÜV 12.2073X
KCs Certificate 14-GA4BO-0252X
Marine Approvals LRS: 01/00172, DNV: TAE000000Y, ABS: 20-LD1948801-PDA, BV: 43180 A1 BV
Ingress Protection Rating** IP66, IP67 & IP68****
NEMA Rating** Type 4X
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Electroless Nickel Plated Brass, Copper Free (<0.4%) Aluminium, Stainless Steel
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / Epoxy Barrier Compound
Cable Type Single/Served Wire Armor (SWA)***
Armor Clamping Detachable Compound Tube / Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP Outer Seal (Load Retention Seal)
Sealing Area(s) Inner Compound Barrier & Cable Outer Sheath
Note: * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
*** Where the cable is permitted by code (NEC and/or CEC)
**** IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Combined Ordering Reference (*Nickel Plated Brass NPT) Available Entry Threads 'C'
(Alternative Metric Thread Lengths Available)		Number of CoresDiameter Over Conductors
'A'		Cable Bedding Diameter 'G'Overall Cable Diameter 'B'Armor RangeAcross Flats 'D'Across Corners 'D'Protrusion Length 'F'ShroudCable
Gland Weight (oz)
SizeTypeOrdering SuffixNPTNPT
(Option)		Metric
(Option)		Thread Length (NPT) 'E'MaxMaxMinMaxMinMaxMaxMax
20S16PX2KW1RA531½"¾"M200.78210.460.460.240.520.030.051.201.322.44PVC068.47
20SPX2KW1RA531½"¾"M200.78210.460.460.370.630.030.051.201.322.44PVC068.11
20PX2KW1RA531½"¾"M200.78210.500.510.490.820.030.051.201.322.48PVC068.47
25SPX2KW1RA532¾"1"M250.80300.690.700.550.870.050.061.481.622.74PVC0913.05
25PX2KW1RA532¾"1"M250.80300.690.700.721.030.050.061.481.622.74PVC0913.05
32PX2KW1RA5331"1 ¼"M320.98380.930.940.931.340.060.081.811.992.95PVC1120.11
40PX2KW1RA5341 ¼"1 ½"M401.01591.181.191.101.590.060.082.172.382.95PVC1528.22
50SPX2KW1RA5351 ½"2"M501.03891.441.451.391.840.080.102.362.603.03PVC1831.75
50PX2KW1RA5362"2 ½"M501.061151.611.631.592.090.080.102.763.043.03PVC2141.98
63SPX2KW1RA5362"2 ½"M631.061151.891.881.802.340.080.102.953.253.14PVC2349.03
63PX2KW1RA5372 ½"3"M631.571152.112.132.152.590.080.103.153.463.16PVC2549.74
75SPX2KW1RA5372 ½"3"M751.571402.362.372.322.840.080.103.543.903.42PVC2873.72
75PX2KW1RA5383"3 ½"M751.631402.532.532.633.090.100.123.944.333.48PVC3089.60
90PX2KW1RA5393 ½"4"M901.691402.972.983.003.560.120.164.504.954.02PVC32130.87
100PX2KW1RA5393 ½"4"M1001.692003.293.383.393.990.120.165.245.764.49LSF33169.67
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1”
For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39, 4” = 310 (Brass requires prefix “0”)
Examples: 32PX2KW1RA534 = Nickel Plated Brass 1 ¼” NPT, 25PX2KW1RA432 = Stainless Steel ¾” NPT, 20PX2KW1RA5 Nickel Plated Brass M20
Dimensions in inches unless otherwise stated

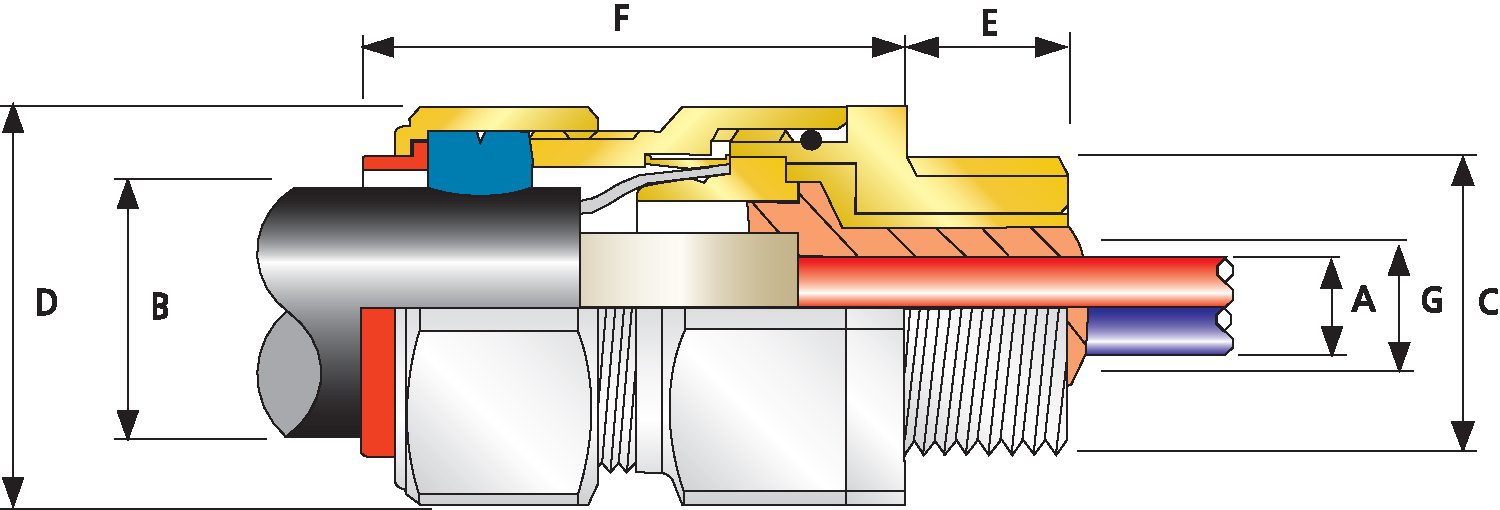

Technical Illustration
