Thorus (SSCAL) High Voltage Single/Parallel Saddle Cable Cleat

The THORUS cable support cleat has been designed, constructed and tested in accordance with the International Standard IEC 61914:2015 cable cleats for electrical installations; to ensure the securing and retention of cables, without sustaining damage to the cable(s).

Designed to support cables in high voltage applications, the THORUS allows cable sag between fixed anchor points, where desirable. Sagging cable between fixed anchor points is a method of installation where the cable is allowed to hang between the cleats. This area of excess cable will accommodate thermal expansion and contraction of the cable in service, without putting undue stress on the anchor
points.

The THORUS adds additional support to the cable at the anchor points, ensuring there is no excessive pressure or point loading to the cable in these critical areas. The system is designed so that the support arm and cleat area can swivel and rotate, allowing flexibility to the installer.

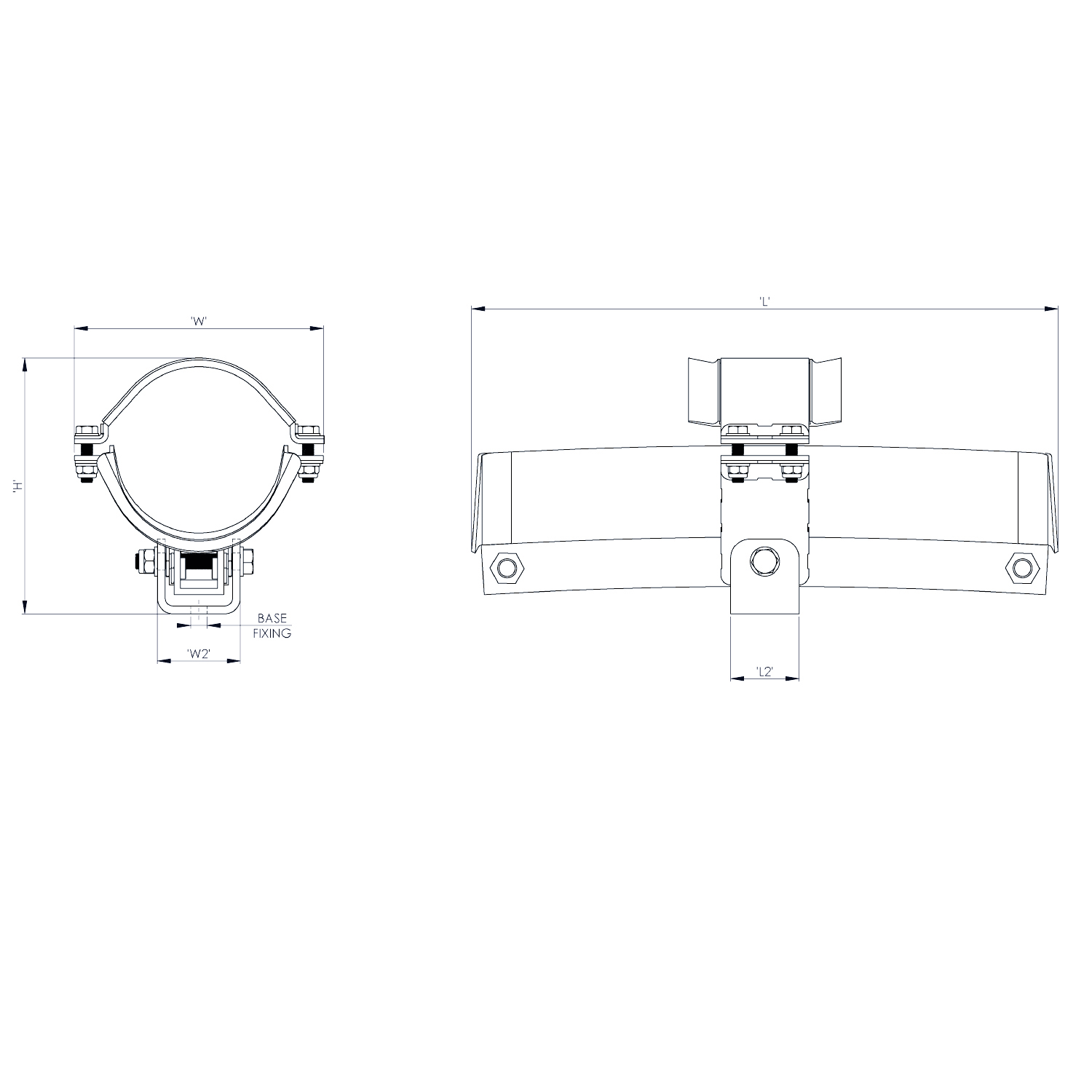

The THORUS comes in three lengths; 400mm, 600mm and 800mm. This will accommodate larger cable cleat fixing centers, whilst reducing the pressure applied to the cable from its own weight.

The product can be fabricated to suit any installation parameters. Please contact CMP to discuss your specific project requirements.

Features

• Third party tested in accordance with IEC 61914:2015
• Corrosion resistant aluminium
• Sunlight (UV) resistant
• Operating temperature -60°C to +60°C
• Allows cable sag between fixed anchor points
• No excessive pressure points to the cable
• Increased support reducing pressure on cable
• Strong but lightweight construction
