Helios Standard Duty, 1-bolt, Fire Performance Cable Cleat

Description

Technical

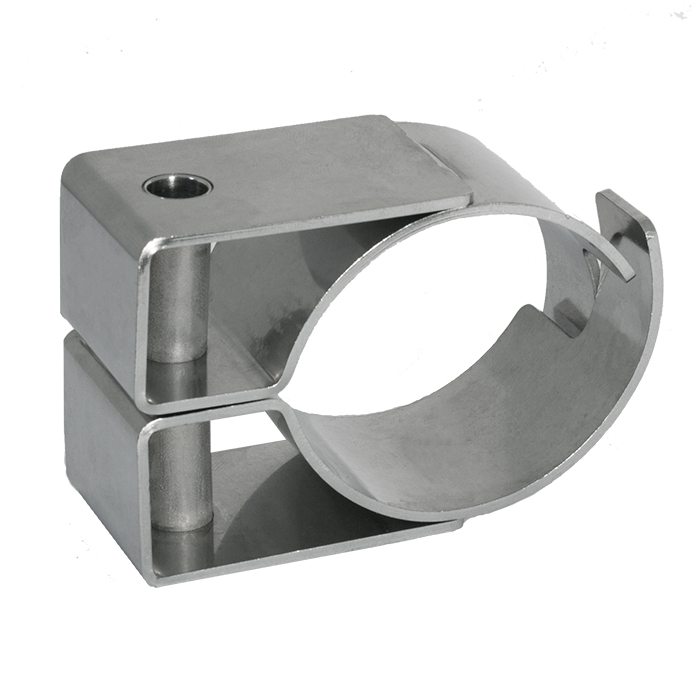

The Helios Standard Duty, One Bolt, High Temperature Fire Rated Stainless Steel single cable cleat is a fabricated metallic cleat which has been designed, constructed, and tested in accordance with the International Standard ‘Cable Cleats for Electrical Installations’ (IEC 61914).

These Fire Rated cable cleats can be used with fire performance cables to ensure the safe retention and securing of single cables in the event of a wiring system being affected by fire. These fire resisting supports help to maintain the electrical systems integrity for any critical circuits during an emergency situation to enable safe evacuation. The cable cleat is fabricated from Stainless Steel 316L making it suitable for both indoor and outdoor applications.

The Helios High Temperature Stainless Steel 316L cable cleat is available in eleven sizes suitable for cable diameters of 10mm up to 65mm. The cable cleat has an M10 clearance hole for securing it to a mounting surface.

Features

Fabricated Stainless Steel 316L
Operating temperature -60°C to +250°C
Surpasses requirements of Fire testing BS5839 / BS8491 / EN50200 / BS8434 / AS-NZS 3013 (1,200°C) (Fire, shock & water)
10 – 65mm cable range take in 11 sizes
Single bolt fixing design
Can be stacked
Corrosion resistant

Parallel Formation
One short circuit 600mm fixed cleat centres 100mm cable centres	Two short circuit 600mm fixed cleat centres 100mm cable centres
0.1 sec	0.1 sec
60kA Peak	60kA Peak
29kA RMS	29kA RMS

BS 5839 ‘Fire detection and fire alarm systems for buildings. Code of practice
for design, installation, commissioning and maintenance of systems
in non-domestic premises’
States that “Methods of cable support should be non-combustible and such
that circuit integrity will not be reduced below that afforded by the cable used, and should withstand a similar temperature and duration to that of the cable,
while maintaining adequate support”
To adhere to this BSI standard fire rated Cable Cleats must be used to support
the cable in the event of a fire.

Type	6.1.1 Metallic SDHT - One Bolt Fabricated High Temperature Stainless Steel Cable Cleat
Design Specification	IEC 61914
Temperature for permanent application	-60°C to +250°C IEC 61914
Fire Tested	Surpasses requirements of Fire testing BS5839/BS8491/EN50200/BS8434/AS-NZS 3013 (1,200°C)(Fire, shock & water)
Needle Flame Test	Pass - 120 second flame application time IEC 61914, IEC 60695-11-5
Lateral Load Test	480N IEC 61914
Axial Load Test	28N IEC 61914
Impact Resistance	Pass - Very heavy IEC 61914
Material	Stainless Steel 316L
Material Colour	Silver / grey

Coatings are available upon request by adding the following suffixes to the ordering reference – EC for epoxy coating, PC for polyester coating and TC for thermoplastic coating. Example order reference for epoxy coating suffix EC (FPC2327EC). Fasteners required to secure the cable cleat to the support structure are not included but can be supplied upon request.

Isolation/separation pads (to prevent corrosion between two dissimilar metals) are not included but can be supplied on request - see isolation / separation page.

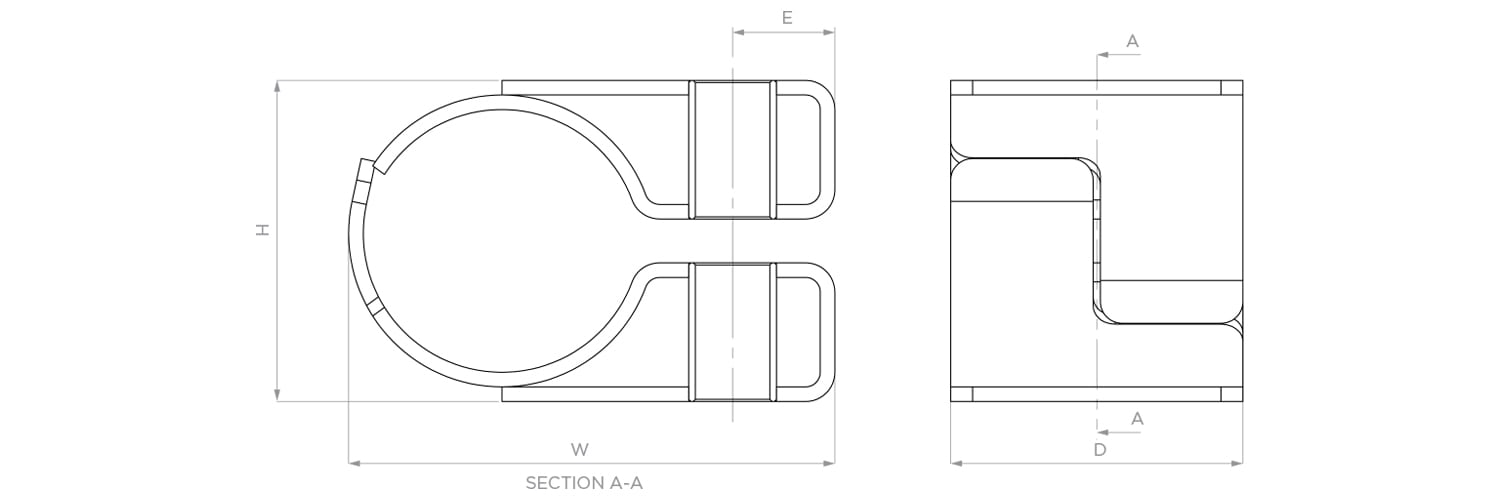

Helios Part No.	Cable Ø range take (in)	Dimensions (in)					Weight (oz)
Helios Part No.	Cable Ø range take (in)	W	H	D	E	Fixing Hole Ø	Weight (oz)
FPC1013	0.39 - 0.51	1.50	0.75	1.57	0.6	1 x M10	3.10
FPC1316	0.51 - 0.63	1.61	0.87	1.57	0.6	1 x M10	3.63
FPC1619	0.63 - 0. 75	1.77	0.98	1.57	0.6	1 x M10	4.02
FPC1923	0.75 - 0.91	1.97	1.14	1.57	0.6	1 x M10	4.52
FPC2327	0.91 - 1.06	2.17	1.30	1.57	0.6	1 x M10	5.04
FPC2732	1.06 - 1.26	2.40	1.50	1.57	0.6	1 x M10	5.82
FPC3238	1.26 - 1.50	2.64	1.73	1.57	0.6	1 x M10	6.42
FPC3846	1.50 - 1.81	2.91	2.05	1.57	0.6	1 x M10	7.41
FPC4651	1.81 - 2.01	3.15	2.24	1.57	0.6	1 x M10	8.22
FPC5157	2.01 - 2.24	3.39	2.48	1.57	0.6	1 x M10	8.89
FPC5765	2.24 - 2.56	3.70	2.80	1.57	0.6	1 x M10	9.67
