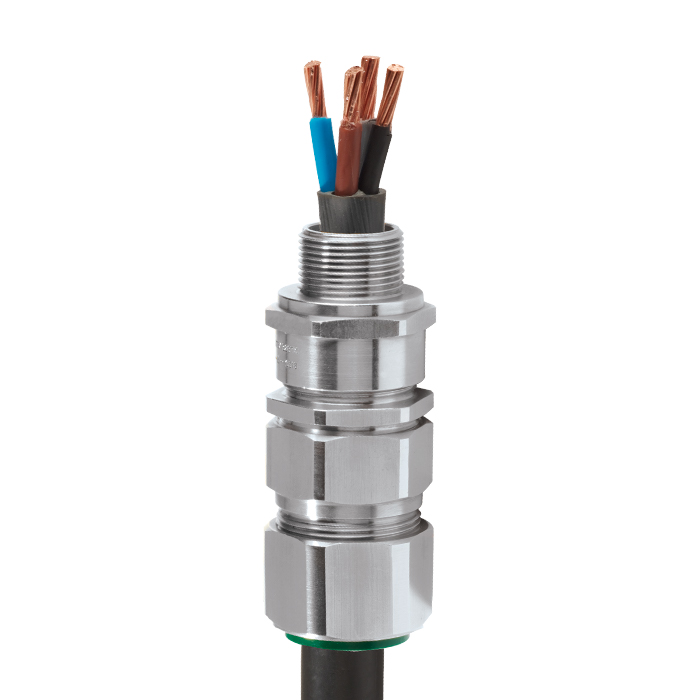

Globally Approved, Explosive Atmosphere Cable Gland
• Metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow
• -60˚C to +130˚C
• Class I Zone 1, 21 and Zone 2, 22 Class I Division 2 ABCD
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested
Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) and Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) and Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W).
Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a
single layer of armour such as SWA the clamping range should be used as shown in the table below.
Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables.
| BS 6121:Part 1:1989, IEC 62444, EN 62444 | |
| Impact = Level 8, Retention = Class D | |
| IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only | |
| Category B (Category A when used with braid, tape or pliable wire armour cables) | |
| CML 18ATEX1324X, CML 18ATEX4316X | |
| II 2G, II 1D, Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da II 3G Ex nR IIC Gc, IM2 Ex d I Mb, Ex e I Mb |
|
| EN 60079-0,1,7,15,31 | |
| IECEx CML 18.0181X, IECEx SIM 14.0007X | |
| Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb | |
| IEC 60079-0,1,7,15,31 | |
| 1310517 | |
| Ex d IIC; Ex e II; Ex nR II; Class I, Div 2, Groups A,B,C,D, Class II, Div 2 Groups E,F,G, Class III; Encl Type T4X Class I, Zone 1, AEx e II / AEx nR II |
|
| CAN/CSA-C22.2 No 0,18,25,30,174,94, CAN/CSA-E60079-0,1,7,15 ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079-0,1,7,15 |
|
| TC RU C-GB.ГБ05.B00138 | |
| 14-GA4BO-0257X | |
| GYJ13.1140X , GYJ13.1282X | |
| P444949 | |
| TÜV 12.0618X | |
| 03866 | |
| LRS: 01/00172 (E3), DNV: E-13848, ABS: 14-LD234401A-4-PDA | |
| IP66 as standard (IP67, IP68 available upon request) | |
| DTS01:91 option available on request (white ferrule for identification purposes) | |
| Brass, Electroless Nickel Plated Brass, Aluminium | |
| CMP SOLO LSF Halogen Free Thermoset Elastomer | |
| Single Wire Armour (SWA), Aluminium Wire Armour (AWA), Steel Tape Armour (STA), Wire Braid Armour (e.g. SWB), Aluminium Strip Armour (ASA), Pliable Wire Armour (PWA), Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Armoured & Jacketed |
|
| Reversible Armour Cone & AnyWay Universal Clamping Ring | |
| CMP Inner Displacement Seal & Unique CMP ‘LRS’ ™ Outer Load Retention Seal | |
| Cable Inner Bedding & Outer Cable Sheath |
Note : * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

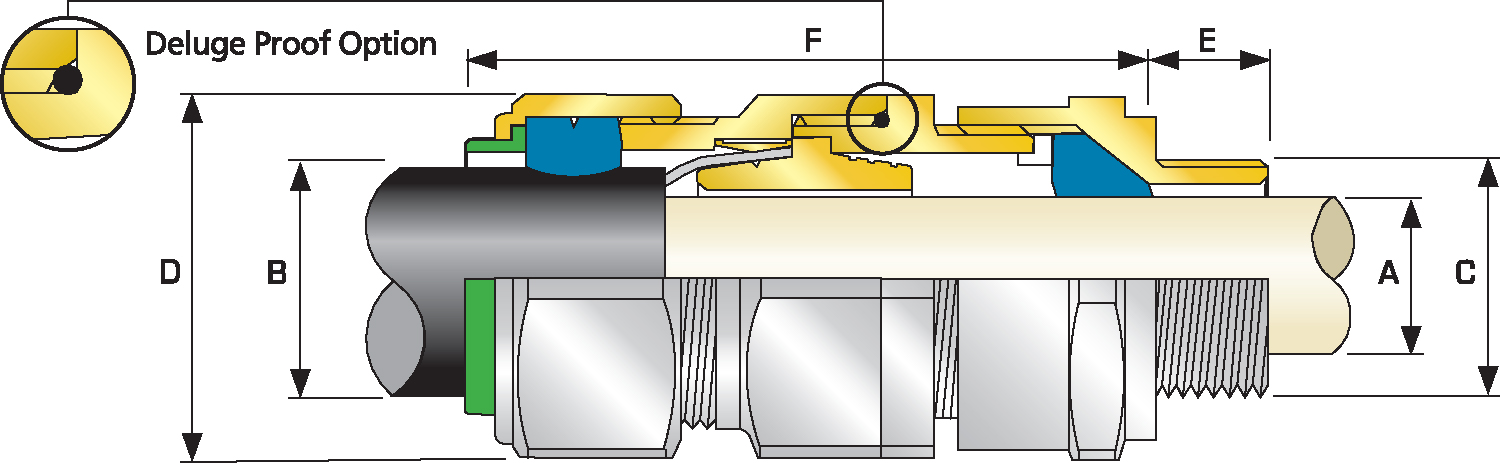

Нажмите здесь чтобы ознакомиться с технической иллюстрацией
Нажмите здесь чтобы просмотреть информацию о заказе
| Cable Gland Size | Available Entry Threads "C" (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter "A" | Overall Cable Diameter "B" | Armour Range | Across Flats "D" | Across Corners "D" | Protrusion Length "F" | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Ozs) |
|||||||||||
| Standard | Option | Grooved Cone (X) | Stepped Cone (W) | ||||||||||||||||||
| Metric | Thread Length (Metric) "E" | NPT | Thread Length (NPT) "E" | NPT | Min | Max | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20s16 | M20 | 0.591 | 1/2" | 0.783 | 3/4" | 0.122 | 0.339 | 0.240 | 0.516 | 0.012 | 0.039 | 0.031 | 0.049 | 0.945 | 1.039 | 2.854 | 20S16 | E1FU | 1RA | PVC04 | 5.644 |
| 20S | M20 | 0.591 | 1/2" | 0.783 | 3/4" | 0.240 | 0.457 | 0.374 | 0.626 | 0.012 | 0.039 | 0.031 | 0.049 | 0.945 | 1.039 | 2.756 | 20S | E1FU | 1RA | PVC04 | 5.291 |
| 20 | M20 | 0.591 | 1/2" | 0.783 | 3/4" | 0.256 | 0.547 | 0.492 | 0.823 | 0.016 | 0.039 | 0.031 | 0.049 | 1.201 | 1.323 | 2.874 | 20 | E1FU | 1RA | PVC06 | 7.408 |
| 25S | M25 | 0.591 | 3/4" | 0.795 | 1" | 0.437 | 0.783 | 0.551 | 0.866 | 0.016 | 0.047 | 0.049 | 0.063 | 1.476 | 1.626 | 3.504 | 25S | E1FU | 1RA | PVC09 | 11.640 |
| 25 | M25 | 0.591 | 3/4" | 0.795 | 1" | 0.437 | 0.783 | 0.717 | 1.031 | 0.016 | 0.047 | 0.049 | 0.063 | 1.476 | 1.626 | 3.504 | 25 | E1FU | 1RA | PVC09 | 11.640 |
| 32 | M32 | 0.591 | 1" | 0.984 | 1 1/4" | 0.669 | 1.031 | 0.933 | 1.335 | 0.016 | 0.047 | 0.063 | 0.079 | 1.811 | 1.992 | 3.386 | 32 | E1FU | 1RA | PVC11 | 15.168 |
| 40 | M40 | 0.591 | 1 1/4" | 1.008 | 1 1/2" | 0.866 | 1.264 | 1.098 | 1.591 | 0.016 | 0.063 | 0.063 | 0.079 | 2.165 | 2.382 | 3.543 | 40 | E1FU | 1RA | PVC15 | 21.870 |
| 50S | M50 | 0.591 | 1 1/2" | 1.028 | 2" | 1.161 | 1.500 | 1.386 | 1.839 | 0.016 | 0.063 | 0.079 | 0.098 | 2.362 | 2.598 | 3.583 | 50S | E1FU | 1RA | PVC18 | 26.456 |
| 50 | M50 | 0.591 | 2" | 1.059 | 2 1/2" | 1.402 | 1.732 | 1.591 | 2.087 | 0.024 | 0.063 | 0.079 | 0.098 | 2.760 | 3.035 | 3.740 | 50 | E1FU | 1RA | PVC21 | 33.510 |
| 63S | M63 | 0.591 | 2" | 1.059 | 2 1/2" | 1.579 | 1.965 | 1.795 | 2.339 | 0.024 | 0.063 | 0.079 | 0.098 | 2.953 | 3.248 | 4.016 | 63S | E1FU | 1RA | PVC23 | 47.267 |
| 63 | M63 | 0.591 | 2 1/2" | 1.571 | 3" | 1.858 | 2.201 | 2.150 | 2.591 | 0.024 | 0.063 | 0.079 | 0.098 | 3.150 | 3.465 | 4.094 | 63 | E1FU | 1RA | PVC25 | 47.267 |
| 75S | M75 | 0.591 | 2 1/2" | 1.571 | 3" | 2.079 | 2.437 | 2.323 | 2.835 | 0.024 | 0.063 | 0.079 | 0.098 | 3.543 | 3.898 | 4.528 | 75S | E1FU | 1RA | PVC28 | 74.428 |
| 75 | M75 | 0.591 | 3" | 1.634 | 3 1/2" | 2.327 | 2.673 | 2.626 | 3.087 | 0.024 | 0.063 | 0.098 | 0.118 | 3.937 | 4.331 | 4.606 | 75 | E1FU | 1RA | PVC30 | 85.363 |
| 90 | M90 | 0.945 | 3 1/2" | 1.685 | 4" | 2.622 | 3.094 | 3.000 | 3.555 | 0.031 | 0.063 | 0.124 | 0.157 | 4.500 | 4.937 | 5.787 | 90 | E1FU | 1RA | PVC32 | 148.504 |
| 100 | M100 | 0.945 | 3 1/2" | 1.685 | 4" | 2.992 | 3.579 | 3.390 | 3.992 | 0.031 | 0.063 | 0.124 | 0.157 | 4.843 | 5.327 | 5.512 | 100 | E1FU | 1RA | LSF33 | 156.969 |
| 115 | M115 | 0.945 | 4" | 1.732 | 5" | 3.386 | 3.854 | 3.996 | 4.339 | 0.031 | 0.063 | 0.124 | 0.157 | 5.252 | 5.776 | 6.378 | 115 | E1FU | 1RA | LSF34 | 218.346 |
| 130 | M130 | 0.945 | 5" | 1.843 | 6" | 3.819 | 4.524 | 4.339 | 4.850 | 0.031 | 0.063 | 0.124 | 0.157 | 6.000 | 6.598 | 6.850 | 130 | E1FU | 1RA | LSF35 | 294.185 |
| Dimensions are displayed in inches unless otherwise stated | |||||||||||||||||||||
| Cable Gland Size | Available Entry Threads "C" (Alternate Metric Thread Lengths Available) | Cable Bedding Diameter "A" | Overall Cable Diameter "B" | Armour Range | Across Flats "D" | Across Corners "D" | Protrusion Length "F" | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Kgs) |
|||||||||||
| Standard | Option | Grooved Cone (X) | Stepped Cone (W) | ||||||||||||||||||
| Metric | Thread Length (Metric) "E" | NPT | Thread Length (NPT) "E" | NPT | Min | Max | Min | Max | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20s16 | M20 | 15.0 | 1/2" | 19.9 | 3/4" | 3.1 | 8.6 | 6.1 | 13.1 | 0.3 | 1.0 | 0.8 | 1.25 | 24.0 | 26.4 | 72.5 | 20S16 | E1FU | 1RA | PVC04 | 0.16 |
| 20S | M20 | 15.0 | 1/2" | 19.9 | 3/4" | 6.1 | 11.6 | 9.5 | 15.9 | 0.3 | 1.0 | 0.8 | 1.25 | 24.0 | 26.4 | 70 | 20S | E1FU | 1RA | PVC04 | 0.15 |
| 20 | M20 | 15.0 | 1/2" | 19.9 | 3/4" | 6.5 | 13.9 | 12.5 | 20.9 | 0.4 | 1.0 | 0.8 | 1.25 | 30.5 | 33.6 | 73 | 20 | E1FU | 1RA | PVC06 | 0.21 |
| 25S | M25 | 15.0 | 3/4" | 20.2 | 1" | 11.1 | 19.9 | 14.0 | 22.0 | 0.4 | 1.2 | 1.25 | 1.6 | 37.5 | 41.3 | 89 | 25S | E1FU | 1RA | PVC09 | 0.33 |
| 25 | M25 | 15.0 | 3/4" | 20.2 | 1" | 11.1 | 19.9 | 18.2 | 26.2 | 0.4 | 1.2 | 1.25 | 1.6 | 37.5 | 41.3 | 89 | 25 | E1FU | 1RA | PVC09 | 0.33 |
| 32 | M32 | 15.0 | 1" | 25.0 | 1 1/4" | 17.0 | 26.2 | 23.7 | 33.9 | 0.4 | 1.2 | 1.6 | 2.0 | 46.0 | 50.6 | 86 | 32 | E1FU | 1RA | PVC11 | 0.43 |
| 40 | M40 | 15.0 | 1 1/4" | 25.6 | 1 1/2" | 22.0 | 32.1 | 27.9 | 40.4 | 0.4 | 1.6 | 1.6 | 2.0 | 55.0 | 60.5 | 90 | 40 | E1FU | 1RA | PVC15 | 0.62 |
| 50S | M50 | 15.0 | 1 1/2" | 26.1 | 2" | 29.5 | 38.1 | 35.2 | 46.7 | 0.4 | 1.6 | 2.0 | 2.5 | 60.0 | 66.0 | 91 | 50S | E1FU | 1RA | PVC18 | 0.75 |
| 50 | M50 | 15.0 | 2" | 26.9 | 2 1/2" | 35.6 | 44.0 | 40.4 | 53.0 | 0.6 | 1.6 | 2.0 | 2.5 | 70.1 | 77.1 | 95 | 50 | E1FU | 1RA | PVC21 | 0.95 |
| 63S | M63 | 15.0 | 2" | 26.9 | 2 1/2" | 40.1 | 49.9 | 45.6 | 59.4 | 0.6 | 1.6 | 2.0 | 2.5 | 75.0 | 82.5 | 102 | 63S | E1FU | 1RA | PVC23 | 1.34 |
| 63 | M63 | 15.0 | 2 1/2" | 39.9 | 3" | 47.2 | 55.9 | 54.6 | 65.8 | 0.6 | 1.6 | 2.0 | 2.5 | 80.0 | 88.0 | 104 | 63 | E1FU | 1RA | PVC25 | 1.34 |
| 75S | M75 | 15.0 | 2 1/2" | 39.9 | 3" | 52.8 | 61.9 | 59.0 | 72.0 | 0.6 | 1.6 | 2.0 | 2.5 | 90.0 | 99.0 | 115 | 75S | E1FU | 1RA | PVC28 | 2.11 |
| 75 | M75 | 15.0 | 3" | 41.5 | 3 1/2" | 59.1 | 67.9 | 66.7 | 78.4 | 0.6 | 1.6 | 2.5 | 3.0 | 100.0 | 110.0 | 117 | 75 | E1FU | 1RA | PVC30 | 2.42 |
| 90 | M90 | 24.0 | 3 1/2" | 42.8 | 4" | 66.6 | 78.6 | 76.2 | 90.3 | 0.8 | 1.6 | 3.15 | 4.0 | 114.3 | 125.4 | 147 | 90 | E1FU | 1RA | PVC32 | 4.21 |
| 100 | M100 | 24.0 | 3 1/2" | 42.8 | 4" | 76.0 | 90.9 | 86.1 | 101.4 | 0.8 | 1.6 | 3.15 | 4.0 | 123.0 | 135.3 | 140 | 100 | E1FU | 1RA | LSF33 | 4.45 |
| 115 | M115 | 24.0 | 4" | 44.0 | 5" | 86.0 | 97.9 | 101.5 | 110.2 | 0.8 | 1.6 | 3.15 | 4.0 | 133.4 | 146.7 | 162 | 115 | E1FU | 1RA | LSF34 | 6.19 |
| 130 | M130 | 24.0 | 5" | 46.8 | 6" | 97.0 | 114.9 | 110.2 | 123.2 | 0.8 | 1.6 | 3.15 | 4.0 | 152.4 | 167.6 | 174 | 130 | E1FU | 1RA | LSF35 | 8.34 |
| Dimensions are displayed in millimetres unless otherwise stated | |||||||||||||||||||||
