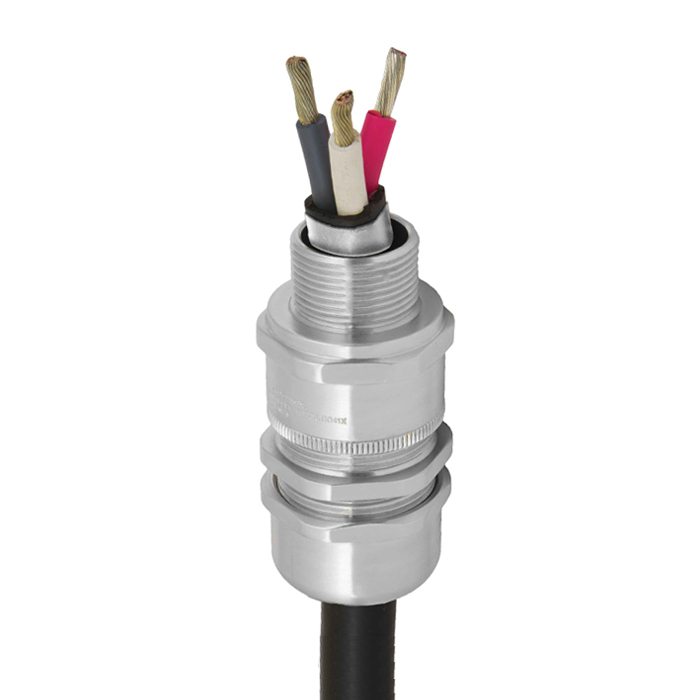

SS2KGPPB | Industrial Cable Gland For all types of Lead Sheathed Unarmoured Cables
We'd like to keep in touch
We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.
Double Seal Industrial Cable Gland
• Effectively earths / grounds lead sheathed cables
• Suitable for Tape Armours
• Direct & remote installation
• Superior levels of cable retention
• Displacement type seals
• Designed to prevent Coldflow
• Deluge protected
• -60°C to +130°C
| Design Specification | BS 6121:Part 1:1989, IEC 62444, EN 62444 |
| Mechanical Classifications* | Impact = Level 8, Retention = Class B |
| Enclosure Protection | IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only |
| GOST R Certificate | POCC.GB.HA46.H00140 |
| Marine Approvals | LRS: 01/00171 , ABS: 16-LD1472056-PDA |
| Ingress Protection Rating ** | IP66, IP67 & IP68 |
| Cable Gland Material | Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium |
| Seal Material | CMP Thermoset Rubber |
| Cable Type | Unarmoured Lead Sheathed, Steel Tape Armour (STA), Aluminium Tape Armour (ATA) |
| Sealing Technique | CMP Unique Displacement Seal Concept |
| Sealing Area(s) | Cable Inner Lead Sheath & Outer Sheath |
| Optional Accessories | Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs |
| Optional Installation Tools | Spanners |
* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** Refer to Maintaining a Seal for further information on Ingress Protection Ratings
Certificates
Product Selection Table
Click here to view how to order

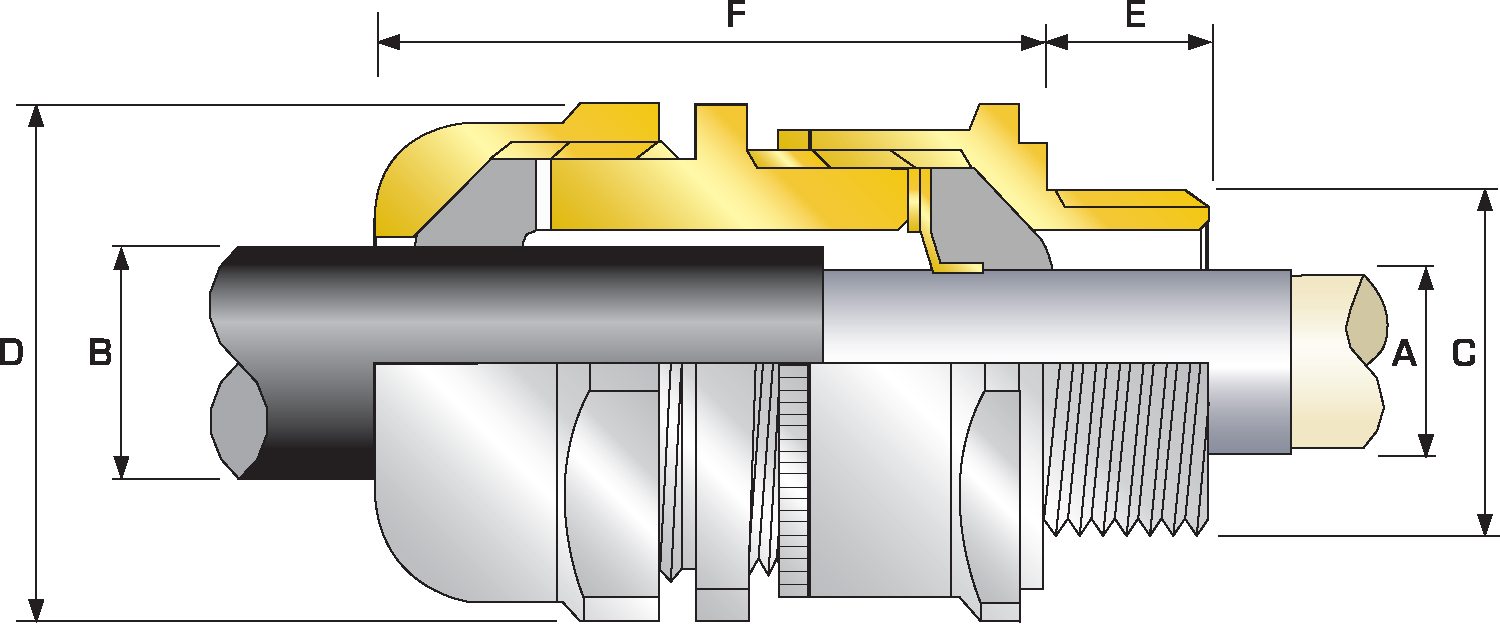

| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Lead Sheath Diameter 'A' | Overall Cable Diameter 'B' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Ozs) |
||||||||
| Standard | Option | ||||||||||||||||
| Metric | Metric | Thread Length (Metric) 'E' | Thread Length (NPT) 'E' | NPT | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 0.39 | ½' | 0.78 | ¾' | 0.13 | 0.31 | 0.13 | 0.34 | 0.94 | 1.04 | 1.95 | 20S16 | SS2KGPPB | 1RA | PVC04 | 4.94 |
| 20S | M20 | 0.39 | ½' | 0.78 | ¾' | 0.24 | 0.43 | 0.24 | 0.46 | 0.94 | 1.04 | 1.95 | 20S | SS2KGPPB | 1RA | PVC04 | 4.59 |
| 20 | M20 | 0.39 | ½' | 0.78 | ¾' | 0.26 | 0.53 | 0.26 | 0.55 | 1.06 | 1.17 | 2.15 | 20 | SS2KGPPB | 1RA | PVC05 | 5.64 |
| 25 | M25 | 0.39 | ¾' | 0.80 | 1' | 0.44 | 0.76 | 0.44 | 0.79 | 1.42 | 1.56 | 2.62 | 25 | SS2KGPPB | 1RA | PVC09 | 10.58 |
| 32 | M32 | 0.39 | 1' | 0.98 | 1 ¼' | 0.67 | 1.00 | 0.67 | 1.04 | 1.61 | 1.78 | 2.66 | 32 | SS2KGPPB | 1RA | PVC10 | 12.35 |
| 40 | M40 | 0.59 | 1 ¼' | 1.01 | 1 ½' | 0.93 | 1.23 | 0.93 | 1.26 | 1.97 | 2.17 | 2.78 | 40 | SS2KGPPB | 1RA | PVC13 | 17.99 |
| 50S | M50 | 0.59 | 1 ½' | 1.03 | 2' | 1.22 | 1.46 | 1.22 | 1.50 | 2.17 | 2.38 | 2.58 | 50S | SS2KGPPB | 1RA | PVC15 | 20.11 |
| 50 | M50 | 0.59 | 2' | 1.06 | 2 ½' | 1.40 | 1.68 | 1.40 | 1.73 | 2.36 | 2.60 | 2.78 | 50 | SS2KGPPB | 1RA | PVC18 | 21.16 |
| 63S | M63 | 0.59 | 2' | 1.06 | 2 ½' | 1.63 | 1.91 | 1.63 | 1.96 | 2.78 | 3.06 | 2.78 | 63S | SS2KGPPB | 1RA | PVC21 | 31.75 |
| 63 | M63 | 0.59 | 2 ½' | 1.57 | 3' | 1.86 | 2.13 | 1.86 | 2.20 | 2.95 | 3.25 | 2.81 | 63 | SS2KGPPB | 1RA | PVC23 | 30.34 |
| 75S | M75 | 0.59 | 2 ½' | 1.57 | 3' | 2.13 | 2.37 | 2.13 | 2.44 | 3.15 | 3.46 | 2.78 | 75S | SS2KGPPB | 1RA | PVC25 | 36.33 |
| 75 | M75 | 0.59 | 3' | 1.63 | 3 ½' | 2.41 | 2.57 | 2.41 | 2.67 | 3.31 | 3.64 | 2.97 | 75 | SS2KGPPB | 1RA | PVC26 | 35.27 |
| 90 | M90 | 0.94 | 3 ½' | 1.69 | 4' | 2.62 | 3.04 | 2.62 | 3.13 | 4.25 | 4.68 | 4.47 | 90 | SS2KGPPB | 1RA | PVC31 | 106.17 |
| 100 | M100 | 0.94 | 3 ½' | 1.69 | 4' | 2.99 | 3.47 | 2.99 | 3.58 | 4.84 | 5.28 | 4.19 | 100 | SS2KGPPB | 1RA | LSF33 | 120.28 |
| 115 | M115 | 0.94 | 4' | 1.73 | 5' | 3.39 | 3.70 | 3.39 | 3.85 | 5.25 | 5.78 | 5.06 | 115 | SS2KGPPB | 1RA | LSF34 | 188.72 |
| 130 | M130 | 0.94 | 5' | 1.84 | - | 3.82 | 4.33 | 3.82 | 4.52 | 6.00 | 6.60 | 5.10 | 130 | SS2KGPPB | 1RA | LSF35 | 225.40 |
| Dimensions displayed in inches unless otherwise stated | |||||||||||||||||
| Cable Gland Size | Available Entry Threads 'C' (Alternate Metric Thread Lengths Available) | Lead Sheath Diameter 'A' | Overall Cable Diameter 'B' | Across Flats 'D' | Across Corners 'D' | Protrusion Length 'F' | Combined Ordering Reference (*Brass Metric) | Shroud | Cable Gland Weight (Kgs) |
||||||||
| Standard | Option | ||||||||||||||||
| Metric | Metric | Thread Length (Metric) 'E' | Thread Length (NPT) 'E' | NPT | Min | Max | Min | Max | Max | Max | Size | Type | Ordering Suffix |
||||
| 20S16 | M20 | 10.0 | ½' | 19.9 | ¾' | 3.2 | 7.8 | 3.2 | 8.6 | 24.0 | 26.4 | 49.5 | 20S16 | SS2KGPPB | 1RA | PVC04 | 0.14 |
| 20S | M20 | 10.0 | ½' | 19.9 | ¾' | 6.1 | 11.0 | 6.1 | 11.7 | 24.0 | 26.4 | 49.5 | 20S | SS2KGPPB | 1RA | PVC04 | 0.13 |
| 20 | M20 | 10.0 | ½' | 19.9 | ¾' | 6.5 | 13.4 | 6.5 | 14.0 | 27.0 | 29.7 | 54.5 | 20 | SS2KGPPB | 1RA | PVC05 | 0.16 |
| 25 | M25 | 10.0 | ¾' | 20.2 | 1' | 11.1 | 19.3 | 11.1 | 20.0 | 36.0 | 39.6 | 66.5 | 25 | SS2KGPPB | 1RA | PVC09 | 0.30 |
| 32 | M32 | 10.0 | 1' | 25.0 | 1 ¼' | 17.0 | 25.5 | 17.0 | 26.3 | 41.0 | 45.1 | 67.5 | 32 | SS2KGPPB | 1RA | PVC10 | 0.35 |
| 40 | M40 | 15.0 | 1 ¼' | 25.6 | 1 ½' | 23.5 | 31.2 | 23.5 | 32.1 | 50.0 | 55.0 | 70.5 | 40 | SS2KGPPB | 1RA | PVC13 | 0.51 |
| 50S | M50 | 15.0 | 1 ½' | 26.1 | 2' | 31.0 | 37.2 | 31.0 | 38.2 | 55.0 | 60.5 | 65.5 | 50S | SS2KGPPB | 1RA | PVC15 | 0.57 |
| 50 | M50 | 15.0 | 2' | 26.9 | 2 ½' | 35.6 | 42.6 | 35.6 | 44.0 | 60.0 | 66.0 | 70.5 | 50 | SS2KGPPB | 1RA | PVC18 | 0.60 |
| 63S | M63 | 15.0 | 2' | 26.9 | 2 ½' | 41.5 | 48.5 | 41.5 | 49.9 | 70.5 | 77.6 | 70.5 | 63S | SS2KGPPB | 1RA | PVC21 | 0.90 |
| 63 | M63 | 15.0 | 2 ½' | 39.9 | 3' | 47.2 | 54.2 | 47.2 | 55.9 | 75.0 | 82.5 | 71.5 | 63 | SS2KGPPB | 1RA | PVC23 | 0.86 |
| 75S | M75 | 15.0 | 2 ½' | 39.9 | 3' | 54.0 | 60.2 | 54.0 | 61.9 | 80.0 | 88.0 | 70.5 | 75S | SS2KGPPB | 1RA | PVC25 | 1.03 |
| 75 | M75 | 15.0 | 3' | 41.5 | 3 ½' | 61.1 | 65.2 | 61.1 | 67.9 | 84.0 | 92.4 | 75.5 | 75 | SS2KGPPB | 1RA | PVC26 | 1.00 |
| 90 | M90 | 24.0 | 3 ½' | 42.8 | 4' | 66.6 | 77.1 | 66.6 | 79.4 | 108.0 | 118.8 | 113.5 | 90 | SS2KGPPB | 1RA | PVC31 | 3.01 |
| 100 | M100 | 24.0 | 3 ½' | 42.8 | 4' | 76.0 | 88.1 | 76.0 | 90.9 | 123.0 | 134.2 | 106.5 | 100 | SS2KGPPB | 1RA | LSF33 | 3.41 |
| 115 | M115 | 24.0 | 4' | 44.0 | 5' | 86.0 | 94.1 | 86.0 | 97.9 | 133.4 | 146.7 | 128.5 | 115 | SS2KGPPB | 1RA | LSF34 | 5.35 |
| 130 | M130 | 24.0 | 5' | 46.8 | - | 97.0 | 110.1 | 97.0 | 114.9 | 152.4 | 167.6 | 129.5 | 130 | SS2KGPPB | 1RA | LSF35 | 6.39 |
| Dimensions displayed in millimeters unless otherwise stated | |||||||||||||||||
Lead Covered / Lead Sheathed Cables
In addition to the standard requirements for SWA cables, there is a set of special guidelines for lead covered cables intended for direct burial in the ground of hydrocarbons processing and refinery sites. These guidelines were introduced in the UK by the Oil Companies Material Association (OCMA) and responsibility for these were subsequently transferred to EEMUA, the Engineering Equipment and Material Users Association.
