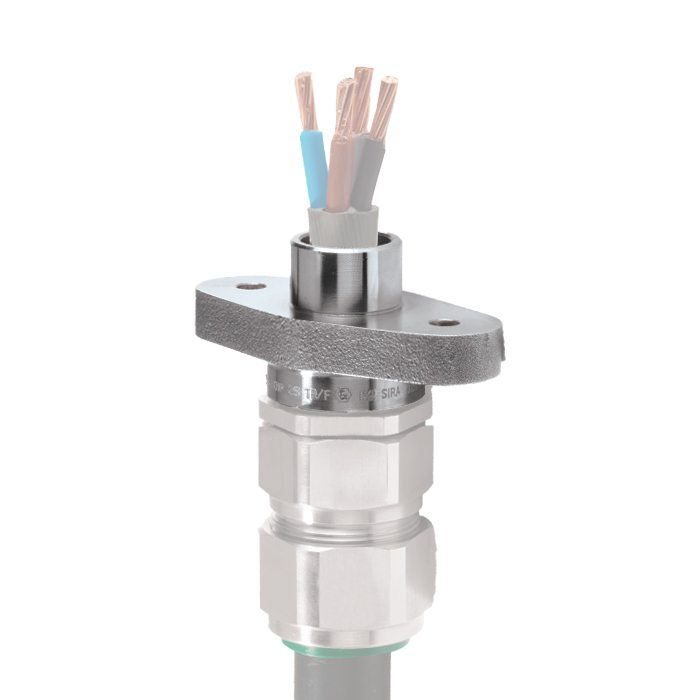

MA/FT, MA/B | Mining Flanged Adaptor For use with Group I cable glands

Description

Technical

• Provides a conversion from spigot entry to a threaded entry
• Provides a thread size conversion if required

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
ATEX Certificate	CML 18ATEX1332U (MA/FT), CML 18ATEX1333U (MA/B)
UKEX Certificate	CML 21UKEX1254U, CML 21UKEX1255U
Code of Protection	IM2 Ex db I Mb
Compliance Standards	EN 60079-0,1
IECEx Certificate	IECEx CML 18.0188U (MA/B) , IECEx CML 18.0189U (MA/FT)
Code of Protection	Ex db I Mb
Compliance Standards	IEC 60079-0,1
Ingress Protection Rating **	Dependent on Cable Gland
Material	Brass, Nickel plated Brass, Stainless Steel

** Refer to Maintaining a Seal for further information on Ingress Protection Ratings

Jump to technical illustration

Click here to view how to order

Showing:

Adaptor Size	Bore Diameter 'H'	Length 'B'	Thread Diameter 'K'	Spigot Diameter 'A'	Width 'O'	Centres 'F'	Diameter 'D'	Diameter 'E'	Bore Depth 'C'	Radius 'G'
20S	0.46	0.44	M20	0.75	1.06	1.75	0.26	0.45	0.28	0.50
20	0.55	0.44	M20	0.75	1.26	1.75	0.26	0.45	0.28	0.50
25S	0.80	0.44	M25	1.00	1.54	2.25	0.26	0.45	0.28	0.50
25	0.80	0.44	M25	1.00	1.54	2.25	0.26	0.45	0.28	0.50
32	1.04	0.50	M32	1.25	1.77	2.75	0.35	0.61	0.34	0.56
40	1.28	0.50	M40	1.50	2.05	3.25	0.35	0.61	0.34	0.56
50S	1.51	0.57	M50	2.00	2.28	3.75	0.43	0.75	0.41	0.69
50	1.74	0.57	M50	2.00	2.52	3.75	0.43	0.75	0.41	0.69
63S	1.98	0.57	M63	2.50	2.80	4.50	0.43	0.75	0.41	0.69
63	2.21	0.57	M63	2.50	2.99	4.50	0.43	0.75	0.41	0.69
75S	2.45	0.71	M75	3.00	3.27	5.00	0.55	0.83	0.53	0.69
75	2.69	0.71	M75	3.00	3.46	5.00	0.55	0.83	0.53	0.69
Dimensions displayed in inches unless otherwise stated

Adaptor Size	Bore Diameter 'H'	Length 'B'	Thread Diameter 'K'	Spigot Diameter 'A'	Width 'O'	Centres 'F'	Diameter 'D'	Diameter 'E'	Bore Depth 'C'	Radius 'G'
20S	11.7	11.1	M20	19.05	27.0	44.45	6.6	11.5	7.0	12.7
20	14.0	11.1	M20	19.05	32.0	44.45	6.6	11.5	7.0	12.7
25S	20.2	11.1	M25	25.40	39.0	57.17	6.6	11.5	7.0	12.7
25	20.2	11.1	M25	25.40	39.0	57.17	6.6	11.5	7.0	12.7
32	26.5	12.7	M32	31.75	45.0	69.85	9.0	15.5	8.7	14.3
40	32.4	12.7	M40	38.10	52.0	82.55	9.0	15.5	8.7	14.3
50S	38.4	14.5	M50	50.80	58.0	95.25	11.0	19.0	10.5	17.5
50	44.3	14.5	M50	50.80	64.0	95.25	11.0	19.0	10.5	17.5
63S	50.3	14.5	M63	63.50	71.0	114.30	11.0	19.0	10.5	17.5
63	56.2	14.5	M63	63.50	76.0	114.30	11.0	19.0	10.5	17.5
75S	62.2	18.0	M75	76.20	83.0	127.00	14.0	21.0	13.5	17.5
75	68.2	18.0	M75	76.20	88.0	127.00	14.0	21.0	13.5	17.5
Dimensions displayed in millimeters unless otherwise stated

Technical Illustration
