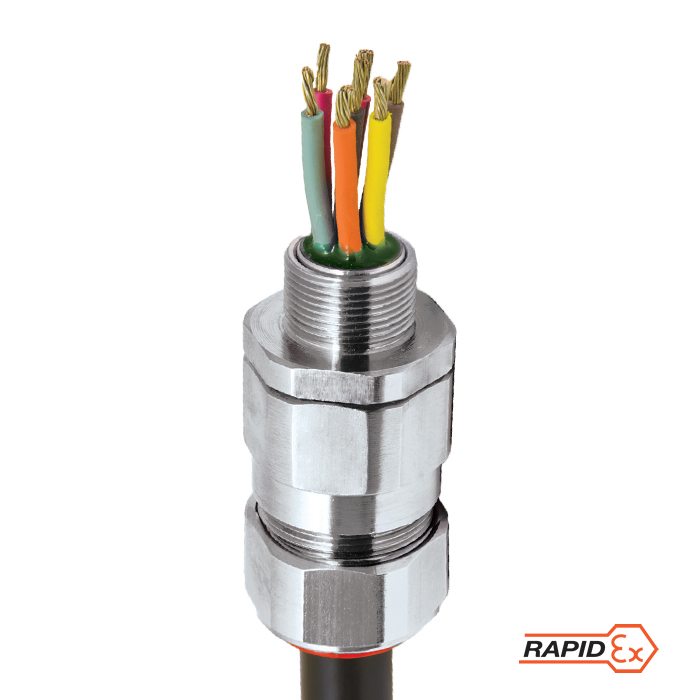

PX2KXREX | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Barrier Cable Gland For all types of Braid & Tape Armoured Cables

Globally Approved, Explosive Atmosphere RapidEx Barrier Cable Gland

• RapidEx liquid pour sealing system
– Enhances reliability, reduces risk
– Reduces man hours
– Reduces cost
• Metal-to-metal armour clamping
• Direct & remote installation
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +85°C
• Globally marked, IECEx, ATEX & cCSAus
• EMC tested
• Once any cable inner sheath/bedding has been removed, the RapidEx liquid resin barrier seals directly around the internal cable cores, completely eliminating any risk of coldflow on all cable types

Patent granted: DE 2287986, ES 2287986, FR 2287986, IT 2287986, NL 2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, CA 2771713, GB 2485114, MY 153846, SG 178839, US 8872027, US 9484133, US 9774178

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B (Category A when used with braid, tape or pliable wire armour cables)
ATEX Certificate CML 18ATEX1325X, CML 18ATEX4317X
UKEX Certificate CML 21UKEX1214X, CML 21UKEX4215X
Code of Protection II 2G, II 1D, Ex db IIC, Ex eb IIC Gb, Ex ta IIIC Da
II 3G Ex nR IIC Gc, IM2 Ex db I Mb, Ex eb I Mb
Compliance Standards EN 60079-0,1,7,15,31
IECEx Certificate IECEx CML 18.0182X
Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb, Ex eb I Mb
Compliance Standards IEC 60079-0,1,7,15,31
cCSAus Certificate (20s16 - 100) 2288626
CSAus Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II:
cCSA Code of Protection*** Class I, Div. 1, 2 Groups A, B, C and D; Class II, Div. 1, 2 Groups E, F and G; Class III, Div. 1, 2; Type 4X: Oil Resistant II: Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
Compliance Standards CAN/CSA-C22.2 No 0,18,25,30,94,174, CAN/CSA-E60079-0,1,7,31 CAN/CSA-E61241-1-1 Part 1-1, ANSI/UL 514B Ed 5, ANSI/UL 50 Ed 11, ANSI/UL 2225 Ed 4, UL60079
EAC Certificate (Formerly GOST R, K & B) C-GB.A07.B.04595/22
UkrSEPRO CU 19.0371X
CCOE / PESO (India) Certificate Ex d: P548696, Ex e: P533772 Ex nR: P548695
CCC Certificate 2020322313003190
INMETRO Approval TÜV 12.2073X
RETIE Approval 03866
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 20-LD1948801-PDA, BV: 43180/A1BV
Ingress Protection Rating ** IP66, IP67 & IP68
Deluge Protection Compliance DTS01 : 91
Cable Gland Material Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Resin Barrier
Cable Type Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel
Tape Armour (STA), Wire Braid Armour (e.g. SWB), Aluminium Strip Armour (ASA),
Armoured & Jacketed
Armour Clamping Detachable Resin Tube / Cone & AnyWay Universal Clamping Ring
Sealing Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Sealing Area(s) Inner RapidEx Barrier Seal & Outer Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners
SANS MS-XPL21962 21.0305X
ECAS Certificate 24-03-106290/E24-03-110155/NB0007

Note: * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
***Where the cable is permitted by code (NEC and/or CEC)
**** IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Combined Ordering Reference
(*Nickel Plated Brass NPT)
Available Entry Threads 'C'
(Alternative Metric Thread Lengths Available)
Number of CoresDiameter Over Conductors
'A'
Cable Bedding Diameter 'G'Overall Cable Diameter 'B'Armor Range †
Grooved Range (X)
Across Flats 'D'Across Corners 'D'Protrusion Length 'F'ShroudApprox Weight Aluminum (oz)
SizeTypeOrdering SuffixNPTNPT
(Option)
Metric
(Option)
Thread Length (NPT) 'E'MaxMaxMinMaxMinMaxMaxMax
20S16PX2KXREX1EX531½"¾"M200.78210.460.460.240.520.010.041.201.322.44PVC068.47
20SPX2KXREX1EX531½"¾"M200.78210.460.460.370.630.010.041.201.322.44PVC068.11
20PX2KXREX1EX531½"¾"M200.78210.500.510.490.820.020.041.201.322.48PVC068.47
25SPX2KXREX1EX532¾"1"M250.80300.690.700.550.870.020.051.481.622.74PVC0913.05
25PX2KXREX1EX532¾"1"M250.80300.690.700.721.030.020.051.481.622.74PVC0913.05
32PX2KXREX1EX5331"1 ¼"M320.98500.930.940.931.340.020.051.811.992.95PVC1120.11
40PX2KXREX1EX5341 ¼"1 ½"M401.01591.181.191.101.590.020.062.172.382.95PVC1528.22
50SPX2KXREX1EX5351 ½"2"M501.03891.441.451.391.840.020.062.362.603.03PVC1831.75
50PX2KXREX1EX5362"2 ½"M501.061151.611.631.592.090.020.062.763.043.03PVC2141.98
63SPX2KXREX1EX5362"2 ½"M631.061151.891.881.802.340.020.062.953.253.14PVC2349.03
63PX2KXREX1EX5372 ½"3"M631.571152.112.132.152.590.020.063.153.463.16PVC2549.74
75SPX2KXREX1EX5372 ½"3"M751.571402.362.372.322.840.020.063.543.903.42PVC2873.72
75PX2KXREX1EX5383"3 ½"M751.631402.532.532.633.090.020.063.944.333.48PVC3089.60
90PX2KXREX1EX5393 ½"4"M901.691402.972.983.003.560.030.064.504.954.02PVC32130.87
100PX2KXREX1EX5393 ½"4"M1001.692003.293.383.393.990.030.065.245.764.49LSF33169.67
*Note : For material options please change the suffix in the ordering reference ; Brass (no suffix required), Nickel Plated Brass “5” (as standard), 316 Grade Stainless Steel “4”, Copper Free Aluminum “1”
For NPT options please change the following digits after the material suffix ; ½” = 31, ¾” = 32, 1” = 33, 1 ¼” = 34, 1 ½” = 35, 2” = 36, 2 ½” = 37, 3” = 38, 3 ½” = 39, 4” = 310 (Brass requires prefix “0”)
Examples: 32PX2KXREX1EX534 = Nickel Plated Brass 1 ¼” NPT, 25PX2KXREX1EX432 = Stainless Steel ¾” NPT, 20PX2KXREX1EX5 Nickel Plated Brass M20
Dimensions displayed in inches otherwise stated
Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Number of CoresDiameter Over Conductors
'A'
Cable Bedding Diameter 'G'Overall
Cable
Diameter
'B'
Armour Range †
Across
Flats
'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
StandardOptionGrooved Cone (X)
MetricThread Length (Metric) 'E'NPTThread Length
(NPT) 'E'
NPTMaxMaxMaxMinMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.0½"19.9¾"2111.711.76.113.10.31.030.533.662.020S16PX2KXREX1RAPVC060.24
20SM2015.0½"19.9¾"2111.711.79.515.90.31.030.533.662.020SPX2KXREX1RAPVC060.23
20M2015.0½"19.9¾"2112.612.912.520.90.41.030.533.663.020PX2KXREX1RAPVC060.24
25SM2515.0¾"20.21"3017.517.914.022.00.41.237.541.369.525SPX2KXREX1RAPVC090.37
25M2515.0¾"20.21"3017.517.918.226.20.41.237.541.369.525PX2KXREX1RAPVC090.37
32M3215.01"25.01 ¼"5023.623.923.733.90.41.246.050.675.032PX2KXREX1RAPVC110.57
40M4015.01 ¼"25.61 ½"5930.030.327.940.40.41.655.060.575.040PX2KXREX1RAPVC150.80
50SM5015.01 ½"26.12"8936.636.935.246.70.41.660.066.077.050SPX2KXREX1RAPVC180.90
50M5015.02"26.92 ½"11541.041.340.453.00.61.670.077.077.050PX2KXREX1RAPVC211.19
63SM6315.02"26.92 ½"11547.947.845.659.40.61.675.082.579.763SPX2KXREX1RAPVC231.39
63M6315.02 ½"39.93"11553.754.054.665.80.61.680.088.080.363PX2KXREX1RAPVC251.41
75SM7515.02 ½"39.93"14059.960.259.072.00.61.690.099.086.875SPX2KXREX1RAPVC282.09
75M7515.03"41.53 ½"14064.264.266.778.40.61.6100.0110.088.375PX2KXREX1RAPVC302.54
90M9020.03 ½"42.84"14075.375.676.290.30.81.6115.0126.5102.190PX2KXREX1RAPVC323.71
100M10020.03 ½"42.84"20085.685.986.1101.40.81.6127.0139.7114.0100PX2KXREX1RALSF334.81
Dimensions in millimeters unless otherwise stated
