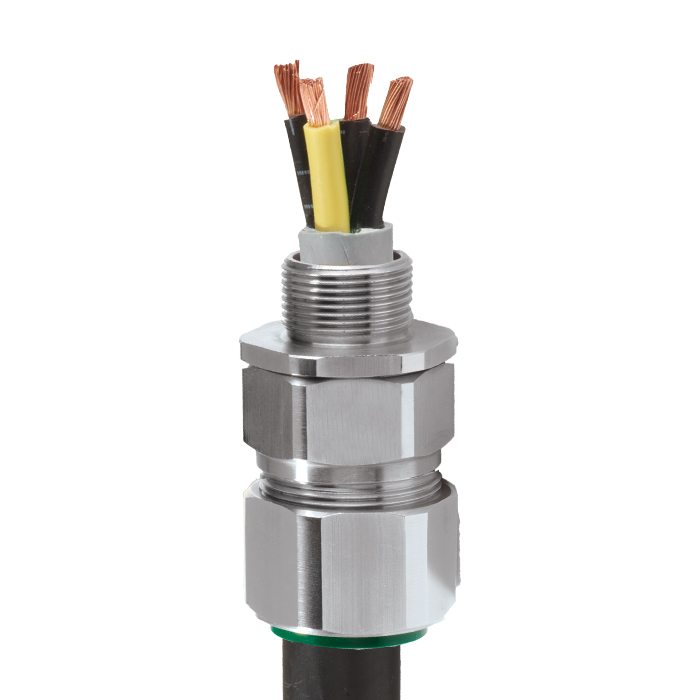

CWe | Ex eb, Ex ta | Explosive Atmosphere Cable Gland For all types of Steel & Aluminium Wire Armoured Cables

Internationally Approved, Ex e, Explosive Atmosphere Cable Gland

• Metal-to-metal armour clamping
• Direct & remote installation
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• Internationally marked, IECEx & ATEX
• EMC tested

Design Specification BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications* Impact = Level 8, Retention = Class D
Enclosure Protection IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
Electrical Classifications * Category B
ATEX Certificate CML 18ATEX1323X
UKEX Certificate CML 21UKEX1251X
Code of Protection II 2G, II 1D, Ex eb IIC Gb, Ex ta IIIC Da
Compliance Standards EN 60079-0,7,31
IECEx Certificate IECEx CML 18.0180X
Code of Protection Ex eb IIC Gb, Ex ta IIIC Da
Compliance Standards IEC 60079-0,7,31
EAC Certificate (Formerly GOST R, K & B) C-GB.A07.B.04594/22
CCC Certificate 2020322313003285
CCOE / PESO (India) Certificate Ex nR: P548695, Ex e: P533772
INMETRO Approval TÜV 12.0617X
RETIE Approval 03866
UkrSEPRO CU 19.0371X
Marine Approvals LRS: 01/00172, DNV: TAE00000Y, ABS: 21-2090433-PDA, BV: 43180
SANS IA S-XPL21804 21.0009X
Ingress Protection Rating ** IP66 as standard (IP67, IP68 available upon request)
Cable Gland Material Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type Single Wire Armour (SWA), Aluminium Wire Armour (AWA)
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Sealing Technique Outer Load Retention Seal (LRS)
Sealing Area(s) Outer Cable Sheath
Optional Accessories Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools Spanners, Armour Former Tool
ECAS Certificate E23-02-065457

Note: * Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444
** When CMP installation accessories are used. Refer to Maintaining a Seal for further information.
*** IP68 tested to a minimum depth of 30 metres for 12 hours, alternate depths / durations can be provided upon request

Jump to technical illustration

Certificates

Click here to view Certificates

Product Selection Table

Click here to view how to order

Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
MetricThread Length
(Metric) 'E'
MaxMaxMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M200.590.340.240.520.030.050.941.041.8920S16CWE1RAPVC043.53
20SM200.590.460.370.630.030.050.941.041.8920SCWE1RAPVC043.53
20M200.590.550.490.820.030.051.201.321.8920CWE1RAPVC065.29
25SM250.590.790.550.870.050.061.481.632.2025SCWE1RAPVC097.76
25M250.590.790.721.030.050.061.481.632.2025CWE1RAPVC097.76
32M320.591.020.931.330.060.081.811.992.1332CWE1RAPVC1110.93
40M400.591.271.101.590.060.082.172.382.2840CWE1RAPVC1515.87
50SM500.591.501.391.840.080.102.362.602.4050SCWE1RAPVC1820.11
50M500.591.741.592.090.080.102.763.042.3650CWE1RAPVC2126.46
63SM630.591.971.802.340.080.102.953.252.9163SCWE1RAPVC2336.68
63M630.592.202.152.590.080.103.153.462.8063CWE1RAPVC2535.98
75SM750.592.442.322.830.080.103.543.903.3975SCWE1RAPVC2863.14
75M750.592.532.633.090.100.123.944.333.2375CWE1RAPVC3073.72
90M900.943.093.003.560.120.164.504.953.7490CWE1RAPVC32107.23
100M1000.943.583.393.990.120.164.845.333.74100CWE1RALSF33110.41
115M1150.943.864.004.340.120.165.255.784.23115CWE1RALSF34158.03
130M1300.944.534.344.850.120.166.006.604.33130CWE1RALSF35203.18
Dimensions displayed in inches unless otherwise stated
Cable Gland SizeAvailable Entry Threads 'C' (Alternate Metric Thread Lengths Available)Cable
Bedding
Diameter
'A'
Overall
Cable
Diameter
'B'
Armour RangeAcross
Flats 'D'
Across
Corners
'D'
Protrusion
Length 'F'
Combined Ordering Reference
(*Brass Metric)
ShroudCable
Gland
Weight
(Kgs)
MetricThread Length
(Metric) 'E'
MaxMaxMaxMinMaxMaxMaxSizeTypeOrdering
Suffix
20S16M2015.08.76.113.10.81.2524.026.448.020S16CWE1RAPVC040.10
20SM2015.011.79.515.90.81.2524.026.448.020SCWE1RAPVC040.10
20M2015.014.012.520.90.81.2530.533.648.020CWE1RAPVC060.15
25SM2515.020.014.022.01.251.637.541.356.025SCWE1RAPVC090.22
25M2515.020.018.226.21.251.637.541.356.025CWE1RAPVC090.22
32M3215.026.023.733.91.62.046.050.654.032CWE1RAPVC110.31
40M4015.032.227.940.41.62.055.060.558.040CWE1RAPVC150.45
50SM5015.038.235.246.72.02.560.066.061.050SCWE1RAPVC180.57
50M5015.044.140.453.02.02.570.177.160.050CWE1RAPVC210.75
63SM6315.050.045.659.42.02.575.082.574.063SCWE1RAPVC231.04
63M6315.056.054.665.82.02.580.088.071.063CWE1RAPVC251.02
75SM7515.062.059.072.02.02.590.099.086.075SCWE1RAPVC281.79
75M7515.064.266.778.42.53.0100.0110.082.075CWE1RAPVC302.09
90M9024.078.676.290.33.154.0114.3125.795.090CWE1RAPVC323.04
100M10024.091.086.1101.43.154.0123.0135.395.0100CWE1RALSF333.13
115M11524.098.0101.5110.23.154.0133.4146.7107.5115CWE1RALSF344.48
130M13024.0115.0110.2123.23.154.0152.4167.6110.0130CWE1RALSF355.76
Dimensions displayed in millimeters unless otherwise stated
